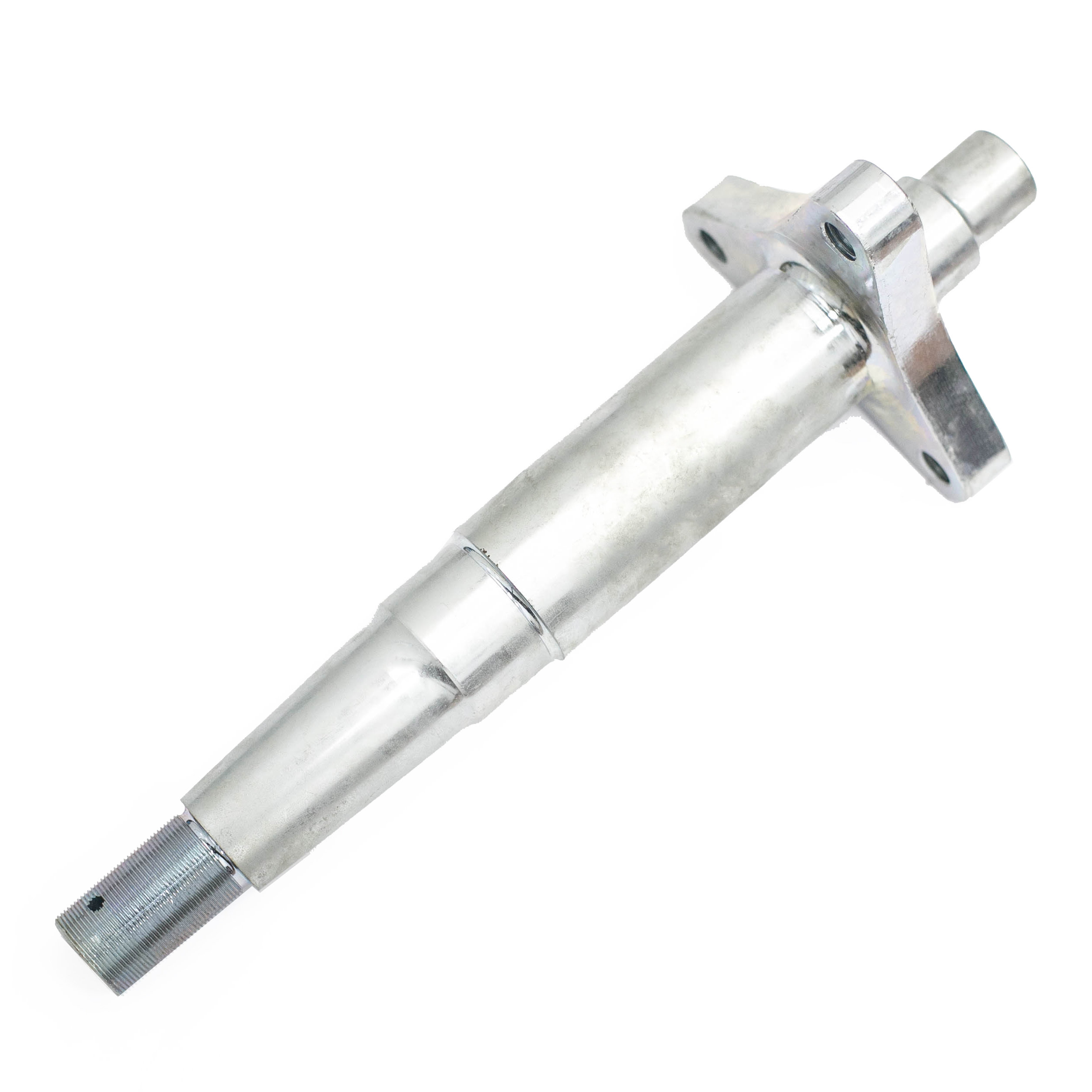

Description
| Weight, W | kg | 8.36 |
| Number of mounting holes, N | 3 | |
| Length, L | mm | 438 |
| Height, H | mm | 140 |
| Thread, M | M36x1.5 | |
| Distance between mounting holes, b | mm | 122 |
| Thread length, Lc | mm | 58 |
| Shaft diameter, Ds | mm | 60 |
| Shaft diameter, Ds1 | mm | 55 |
| Keyway | mm | 65x12x7 |
| Thread, M1 | M18x2 | |
| Shaft diameter, Ds2 | mm | 45 |
| Shaft diameter, Ds3 | mm | 35 |
| Width, B | mm | 155 |
| Split-pin hole diametr, d0 | mm | 6 |
| Thread 02, M | M10 |
